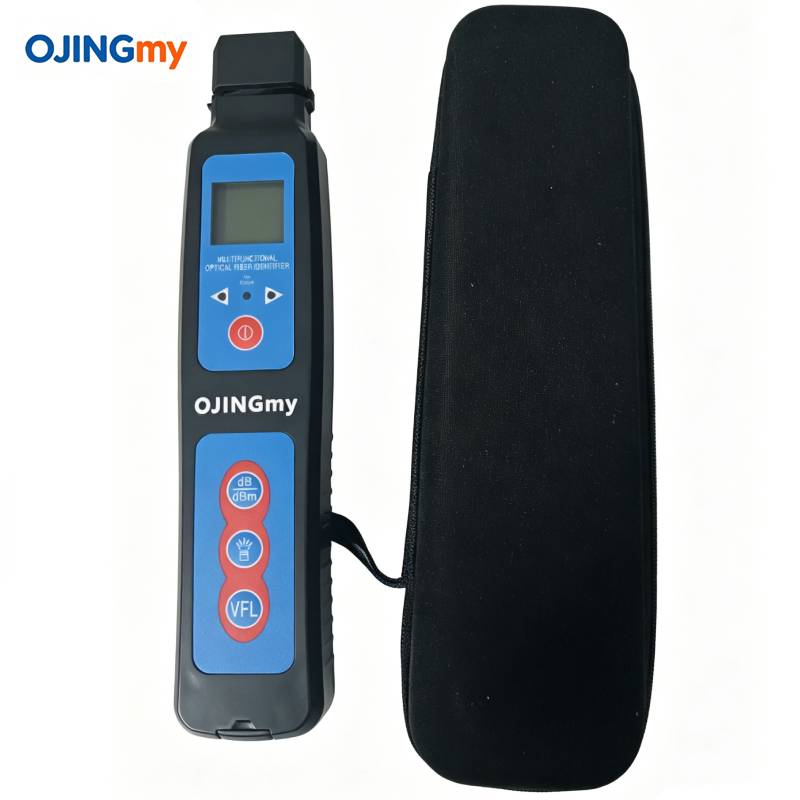

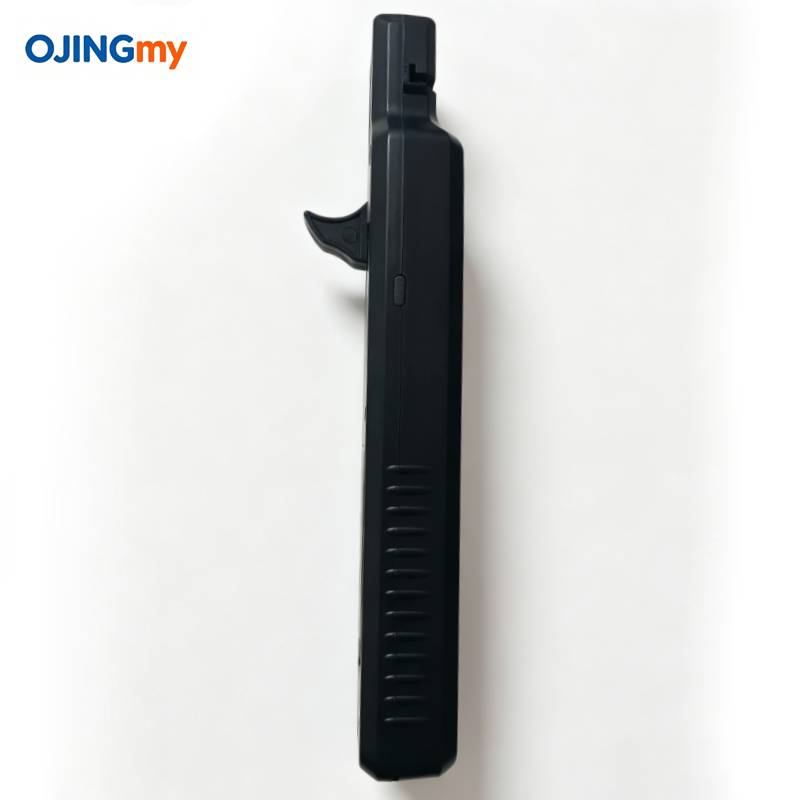

Product Description:

1. The all-in-one red light source machine of the newly upgraded optical fiber identifier is equipped with 2mW/VFL (visual fault locator), LED lighting, power display, and other functions

2. Direction indicator, indicating the signal direction and power in the optical fiber, indicating whether the signal exists or does not exist (charged or dark optical fiber). When the optical fiber has a signal, the left and right direction lamps display the signal direction, and the left direction lamp lights up, indicating that the light source is from left to right

3. The on-line test does not require the replacement of clamps. Single mode/multi-mode is universal. It can effectively identify the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) and give an audible warning

4. Low power indication, displaying relative core power

• Wavelength range：800nm-1700nm（-70~+10dbm）

• Application of optical fiber：250um/900um/2mm/3mm

• Optical fiber Identified signal frequency：270HZ/1KHZ/2KHZ

• Sensitivity range+10~-50dBm

• Wavelength：650nm±10nm

• Dimensions：243*50*50mm

• Weight：180g
