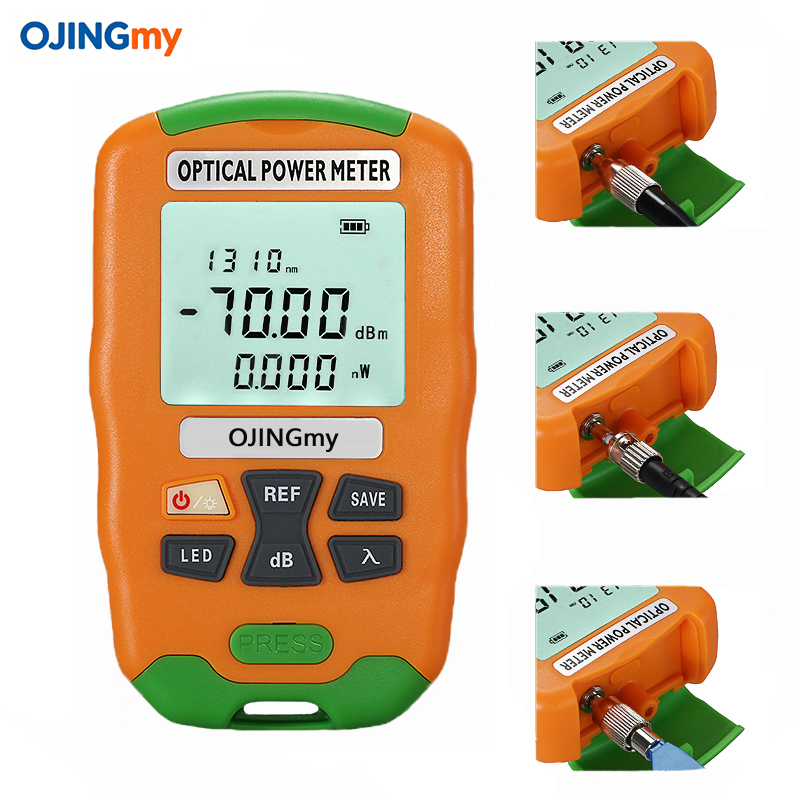

Handheld Optical Power meter 10 test wavelengths -70~-50dBm OPM Equipped with LED lights
- Availability: In Stock
- USD$35.98
- USD$39.98
- Product Model: A-D7
- Brand: OJINGmy
Product description:

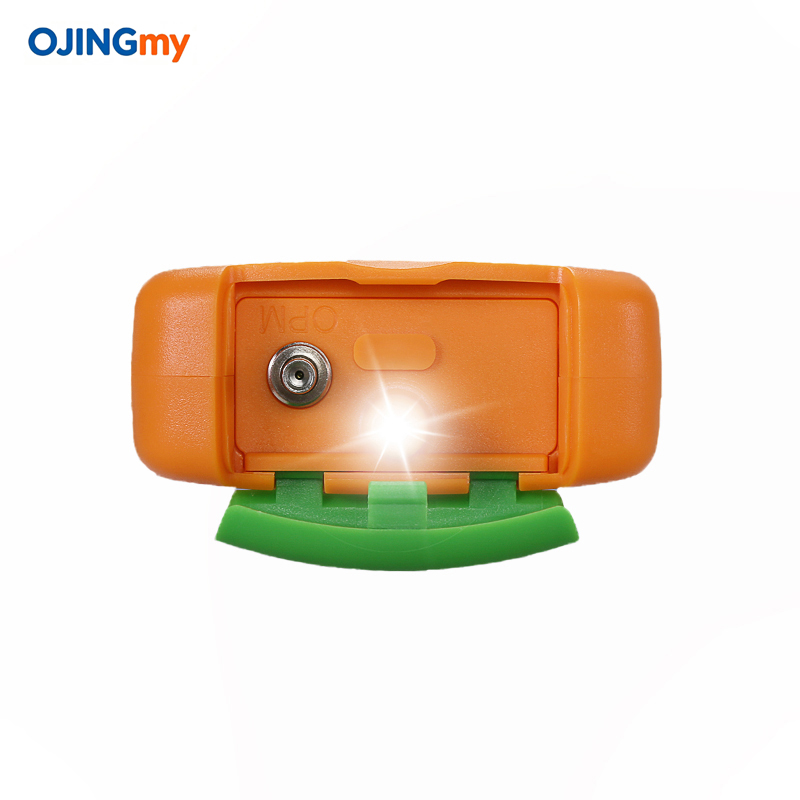

1. Mini fiber power meter (excluding battery), test range -70~+10dBm, test error <± 0.2dB (manual calibration is allowed), OPM, LED, wavelength storage, self calibration, intelligent shutdown, 10 test wavelengths: 850/980/1270/1300/1310/1490/1550/1577/1625/1650nm/, 500 groups of data storage, ready storage, ready viewing, Applicable interface FC/ST/LC.
2. Can adjust itself and test more flexibly. Under the shutdown state, long press the power key and enter the wavelength key for 2 seconds. After starting, enter the calibration function interface. The REF key increases by 0.1 dB and the DB key decreases by 0.1 dB. Press the short power key to save and exit.
Power measurement range :-70~+10dBm
Wavelength range:800~1700nm
Probe type : InGaAS
Standard wavelength :850、980、1270、1300、1310、1490、1550、1577、1625、1650
logarithmic display: 0.01dBm
Display resolution: linear display: 0.1%
Auto shut-off time: 10 minutes
Overall dimension : 111*69*30(mm)
weight: 120g
